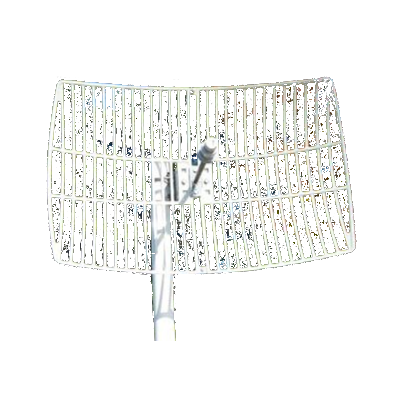

GS2-54-N
- Linear Polarization, rotate antenna for horizontal or vertical polarization
- Die cast aluminum 2 piece reflector, 24.8” X 16.5” (630mm x 420mm)
- All corrosion resistant mount materials, SS hardware.
- 2 U-bolt mount configuration, ±6° elevation range and 125 mph (200km/h) survival. 1 U-bolt configuration, ±60° elevation range and 90 mph
- (145km/h) survival.
- Mounts to 2” OD pipe (50mm), optional 4.5” (114mm) adapter is available
- Maximum input power 100 watts
- Type N Female Connector, 50 Ohm impedance
