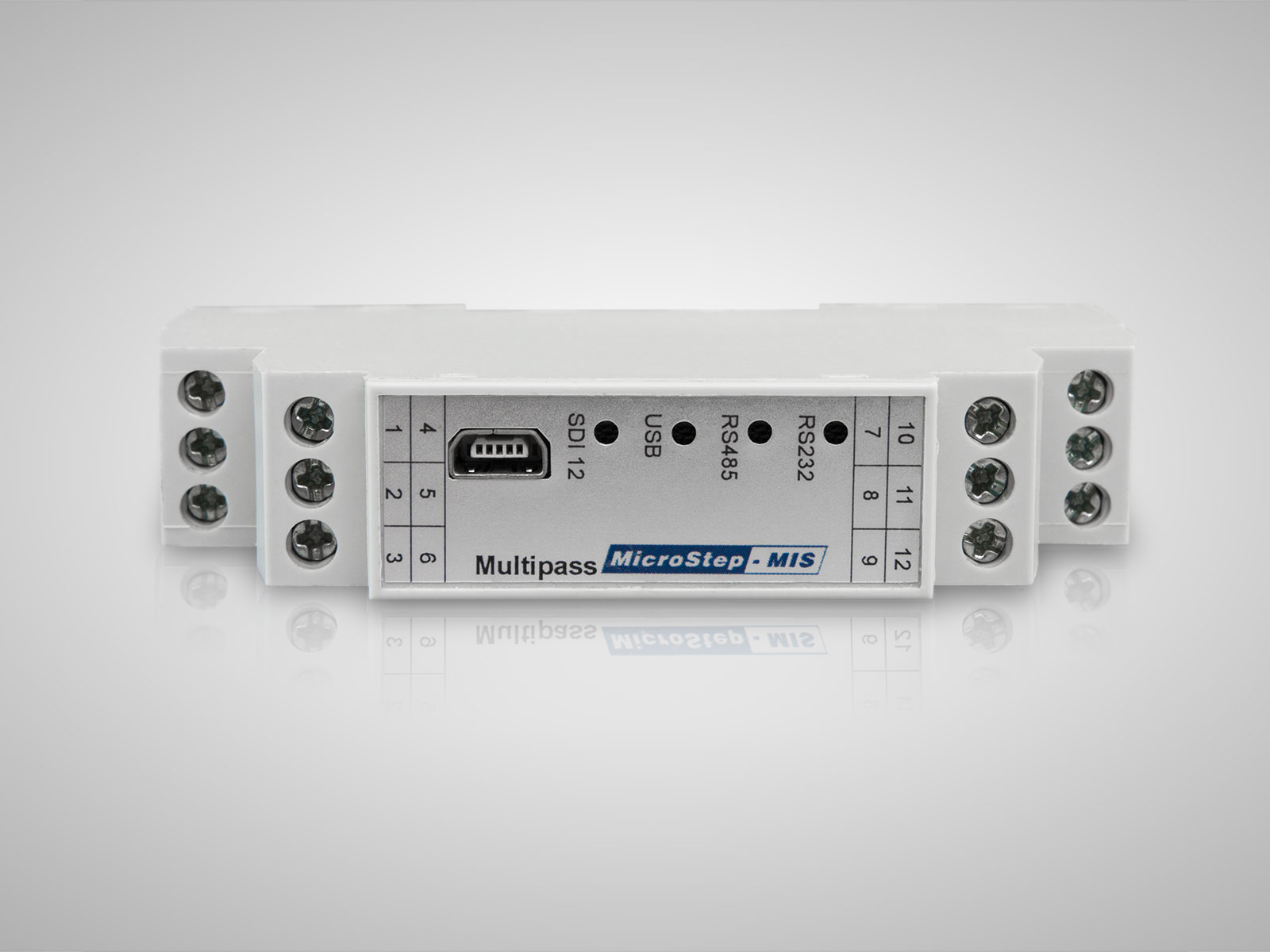

Multipass can connect 4 standard industry buses - RS-232, RS-485/RS-422, USB 2.0 and SDI-12 1.3. USB 2.0 support implemented in the Multipass allows monitoring of the communication via standard USB port of a PC. Multipass supports SDI-12 bus in version 1.3 and acts as a master device. Multipass is based on microprocessor, what allows buffering of the communication and support of different communication speeds and data frames. Activity of buses is shown by four LEDs. The convertor can be powered by the industry power supply or USB. Multipass is housed in DIN 43880 compatible enclosure.

FEATURES

• INDEPENDENT BAUD RATE AND COMMUNICATION DATA FRAMES
• COMMUNICATION BUFFERS
• ISOLATED RS-485/RS-422
• SDI-12 COMMUNICATION INTERFACE
• POWERED BY USB
