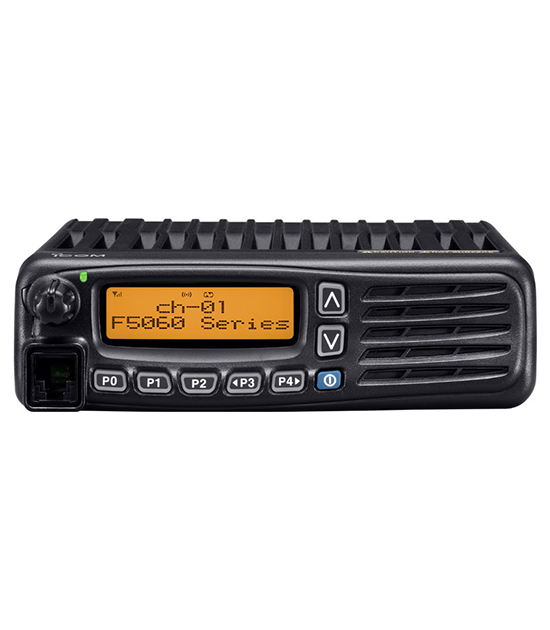

IC-F5060 / IC-F6060 Series
LTR™/CONVENTIONAL/ DIGITAL* MULTI-MODE PROFESSIONAL MOBILE!
Designed for public safety, transportation and delivery service users, the IC-F5061 series offers advanced multi-mode operations, 6.25kHz digital option, improved scanning and flexible installation suitable for mobile and base stations. Just try and outgrow this radio!
* Optional UT-126H required.
Built-in basic LTR™ mode operation
Group, selective and phone calls are available in built-in LTR™ mode. MDC signaling is also available on LTR™ mode.
Optional 6.25kHz digital mode ready
Optional 6.25kHz digital mode is available.
Built-in versatile tone signaling
Use the built-in CTCSS, DTCS, 2-Tone 5-Tone or MDC 1200 capability to set up your own talk groups, and have your radio standby quietly when other groups are talking. Up to 10 2-Tone, 8 5-Tone codes can be decoded on a single memory channel.
IP54 dust-protection and splash resistance (Controller only)
When used with the optional separation kit, RMK-3, and separation cable, the front panel of the IC-F5061 series can be detached from the main unit. The control head has dust-protection and splash resistance construction equivalent to IP54.
Voting scan (Analog mode only)
The voting mode scanning detects the S-meter level of repeater stations and automatically selects the strongest station or the first station to exceed the preset S-meter level, useful for roaming 2 or more repeater sites.
Optional Active Noise Canceling Microphone
The optional active noise canceling microphone HM-211 can automatically reduce noise in extremely noisy environments and assist in transmitting clear and accurate audio.
Watch the HM-211 performance video:
This content requires the Flash Player. Download Flash Player. Already have Flash Player? Click here.
Other features
- The mode slave setting automatically selects the scanning list, according to the operating channel
- Nuisance delete
- Built-in inversion-type voice scrambler and optional UT-109R/UT-110R available
- Large dot matrix display and multi-function LCD
- 8 DTMF autodialing memories and ANI function
- D-Sub accessory connector, ignition sensing line and more..
SPECIFICATIONS
General
IC-F5061 |
IC-F6061 |
|||
|---|---|---|---|---|
| Frequency coverage (Varies according to version) |
136-174 MHz
|
400–470 MHz
450–512 MHz |
||
| Number of channels |
512 ch/128 zones
|
|||
| Channel spacing (Varies according to version) |
12.5/25, 15/30
6.25 (option) kHz |
12.5/25
6.25 (option) kHz |
||
| Type of emission |
16K0F3E,
11K0F3E, 8K10F1E/D, 4K00F1E/D*1 (*1 Digital) |
16K0F3E,
11K0F3E, 11K0F7E/D*2, 8K10F1E/D, 4K00F1E/D*1 (*1 Digital *2 Depending on version) |
||
| Current drain | Tx High |
14A/7A (50/25W)
|
14A/7A (45/25W)
|
|
| Rx | Stand-by |
300 mA
|
||
| Max. audio |
1.2A
|
|||
| Dimensions (projections not included; W×H×D) |
160×45×150 mm;
6.3×1.77×5.91 in |
|||
| Weight (approx.) |
1.3kg; 2.9lb
|
|||
Transmitter
IC-F5061 |
IC-F6061 |
|
|---|---|---|
| RF output power |
50W
|
45W
|
| Spurious emissions |
75dB (typ.)
|
|
| Frequency stability |
±1.0ppm
|
|
| Audio harmonic distortion |
3% typical
40% deviation |
|
| FM Hum and Noise |
45dB typ. (W)
40dB typ. (N) |
|
Receiver
IC-F5061 |
IC-F6061 |
|
|---|---|---|
| Sensitivity at 12dB SINAD |
0.25μV (typ. analog),
0.20μV (typ. digital at 5% BER) |
|
| Adjacent channel selectivity (W/N) |
85/75dB (typ.)
|
|
| Spurious response rejection |
90dB (typ.)
|
|
| Intermodulation rejection |
77dB (typ.)
|
|
| AF output power (at 5% distortion with an 8Ω load) |
4W (typ.)
|
|
FUNCTION COMPARISON AND INTERNAL UNIT OPTIONS
IC-F5061
|
||
|---|---|---|
| Number of option slots | 2* | |
| CTCSS/ DTCS | encoder | Available |
| decoder | Available | |
| 2-Tone | encoder | Available |
| decoder | Available | |
| 5-Tone | encoder | Available |
| decoder | Available | |
| DTMF autodial | Available | |
| DTMF decoder | Available** | |
| Voice Scrambler | Inversion | Available |
| Non-rolling | UT-109R | |
| Rolling | UT-110R | |
| APCO P25 digital | - | |
| AES encryption | - | |
| DES encryption | - | |
| IDAS digital | UT-126H | |
| MPT 1327 | - | |
| MDC 1200 | Available | |
| LTR™ trunking | Available | |
| PassPort | - | |
** Possible as a kind of 5-Tone format.
Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.
| Standard | MIL-810 F Method, Proc. |
|---|---|
| High Temperature Storage |
501.4 I
|
| High Temperature Operation |
501.4 II
|
| Low Temperature Storage |
502.4 I
|
| Low Temperature Operation |
502.4 II
|
| Temperature Shock |
503.4 I
|
| Rain Blowing |
506.4 I*
|
| Rain Drip |
506.4 III*
|
| Humidity Induced |
507.4
|
| Vibration |
514.5 I
|
| Shock Functional |
516.5 I
|
| Shock Transit Drop |
516.5 IV
|
Also meets equivalent MIL STD 810 -C, -D and -E.
All stated specifications are subject to change without notice or obligation.
