IC-M25

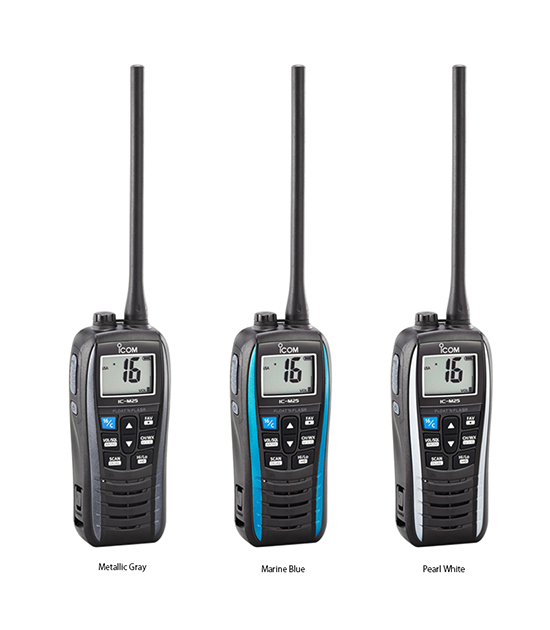

Three Color Choices and Smart Features
Slim, Lightweight, High Performance
The IC-M25 has the slim (depth:30.5mm; 1.2in) and light (220g; 7.8oz) body. It also delivers uncompromised performance that will exceed expectations.
Large LCD, Simple User Interface
The IC-M25’s LCD is 30% larger than its predecessor, the IC-M24 and shows clearly large channel number and status icons. The buttons on the front panel are well laid out and provide simple and straightforward operation.
USB Charging (Micro-B USB type)
A standard USB connector (Micro-B type) is used for charging the IC-M25. Cigarette lighter cables or mobile batteries for charging smartphones or other devices can be used with the IC-M25*.
* The IC-M25 accepts 5V/1A (Max.) input. Use of third-party products is not guaranteed.
Float'n Flash
The IC-M25 floats and lets you know where it is with the flashing red LED light and LCD/key backlight.
11 Hours of Battery Life
The built-in 1500mAh lithium-ion battery allows 11 hours (approx.) of long operation*.
* Typical operation with Tx (Hi): Rx: standby=5:5:90
Optional Speaker-Microphone, HM-213
The optional waterproof speaker-microphone, HM-213, provides commercial grade convenience while mounting the radio around the waist. The radio floats
even when the HM-213 is attached.
550mW Audio Output
The IC-M25 provides a powerful 550mW (typical) audio output and received voice can be heard loud and clear.
Other Features
- IPX7 waterproof construction
(1m depth of water for 30 minutes) - 4-step battery life indicator
- Weather channel with weather alert
- Dual/Tri-watch functions
- Instant access to Ch 16 or programmable call channel
- Favorite channel function
- Monitor function opens noise squelch
- Auto scan function
- LCD auto backlighting
- AquaQuake™ prevents audio degradation from a water-logged speaker
AQUAQUAKE is a trademark of Icom Incorporated. All other products of brands are registered trademarks or trademarks of their respective holders.
Supplied accessories
- USB charger, BC-217SA*
- Belt clip, MB-133
- Antenna, FA-SC59V
- Hand strap
- Battery is built-in
* USB charger is not supplied or may differ depending on version.
FEATURES
General
IC-M25 |
||
|---|---|---|
| Frequency range | Tx | 156.025–157.425MHz |
| Rx | 156.050–163.275MHz | |
| Usable channel groups | INT, USA, CAN, WX channels | |
| Type of emission | 16K0G3E (FM) | |
| Power supply voltage | 3.7V DC nominal | |
| Current drain | Tx | 2.3A |
| Rx (Internal SP/External SP) | 300mA/200mA (Max. audio) | |
| Operating temperature range | –20°C to +60°C; –4°F to +140°F | |
| Antenna impedance | 50Ω | |
| Dimensions (W×H×D) (Projections not included) |
56.6×134.2×30.5mm; 2.2×5.3×1.2 in |
|
| Weight (approximately) | 220g; 7.8oz (With FA-SC59V and MB-133) |
|
TRANSMITTER
| Output power | 5W (approximately)/1W | |
|---|---|---|
| Max. frequency deviation | ±5.0kHz | |
| Frequency stability | ±10ppm | |
| Spurious emissions | –68dBc typical | |
| Adjacent channel power | 70dB | |
| Residual modulation | 40dB | |
RECEIVER
| Sensitivity | 0.25μV typical (at 12dB SINAD) | |
|---|---|---|
| Squelch sensitivity | 0.25μV typical (at threshold) | |
| Adjacent channel selectivity | 70dB typical | |
| Spurious response | 70dB typical | |
| Intermodulation | 70dB typical | |
| Audio output power (at 10% distortion) |
Internal SP | 550mW typical (12Ω load) |
| External SP | 300mW typical (4Ω load) | |
Applicable IP Rating
| Ingress Protection Standard | |
|---|---|
| Water | IPX7 (Waterproof protection) |
Measurements made in accordance with TIA/EIA-603.
All stated specifications are subject to change without notice or obligation.
