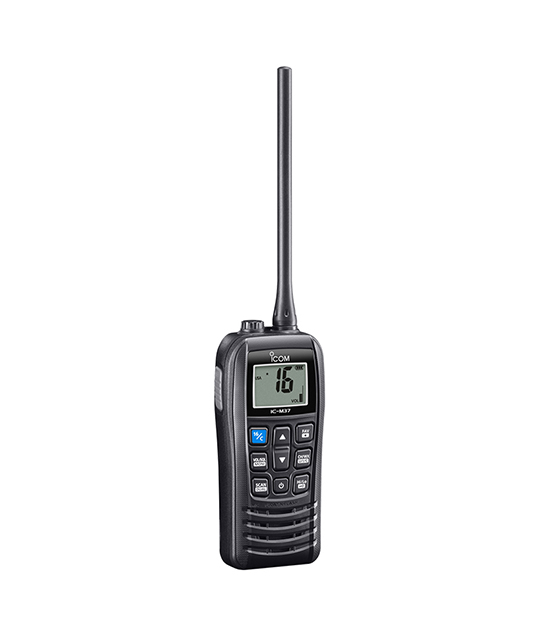

IC-M37
Large Keys and Easy-to-Grip Design
6 W RF Output Power
700 mW Audio Output
More than 12 Hours* of Long-Lasting Operating Time (with BP-296)
* TX: RX: Standby = 5 : 5 : 90.
Channel History Function Stores the Last Five Channels Used for Easy Recall
Float'n Flash Function
The radio floats with a flashing LED light to help you retrieve it from the water.
Float'n Flash Function Movie
And More
IP57 dust-protection and waterproof protection (1 m depth of water for 30 minutes)
Low Battery Alert function
Voice Loud and Mute function enables to temporary maximize/mute the volume
AquaQuake™ function prevents audio degradation from a water-logged speaker
Dualwatch and Tri-Watch functions
Favorite Channel function
Instant access to channel 16 and the Call channel
BP-296 user replaceable Li-ion battery pack supplied
Weather channels with Weather Alert function
Supplied accessories
BP-296 battery pack
BC-235 desktop charger
BC-217SA/SE* AC adapter
FA-SC59V antenna
MB-133 belt clip
Hand strap
* May differ or not supplied, depending on the transceiver version
FEATURES
General
IC-M37 |
||
|---|---|---|
| Frequency range | TX | 156.025–157.425 MHz |
| RX | 156.050–163.275 MHz | |
| Usable channel groups | INT, USA, CAN, WX channels | |
| Type of emission | 16K0G3E | |
| Current drain (at 3.7 V DC) |
TX (6.0 W/1.0 W output) | 2.75 A/1.0 A |
| RX (Max. audio. Inter SP/Exter SP) |
0.4 A/0.2 A | |
| Operating temperature range | -20 °C to +60 °C, -4 °F to +140 °F | |
| Antenna impedance | 50 Ω | |
| Dimensions (W×H×D) (Projections not included) |
59.7 × 140.5 × 38.7 mm, 2.4 × 5.5 × 1.5 in |
|
| Weight (approximate) | 293 g, 10.3 oz (with BP-296, antenna and belt clip) |
|
Transmitter
IC-M37 |
|
|---|---|
| Output power (Hi/Low) | 6 W/1 W |
| Max. frequency deviation | ±5.0 kHz |
| Frequency stability | ±10 ppm |
| Spurious emissions | –68 dBc typical |
Receiver
IC-M37 |
||
|---|---|---|
| Sensitivity (at 12 dB SINAD) | 0.25 μV typical | |
| Squelch sensitivity (Threshold) | 0.25 μV typical | |
| Adjacent channel selectivity | 70 dB typical | |
| Spurious response | 70 dB typical | |
| Intermodulation | 70 dB typical | |
| Hum and noise | 40 dB | |
| Audio output power (at 10% distortion) |
Internal SP | 0.7 W typical ( 8 Ω load) |
| External SP | 0.3 W typical ( 4 Ω load) |
|
Measurements made in accordance with TIA/EIA-603.
All stated specifications are subject to change without notice or obligation.
Applicable U.S. Military Specifications
| Standard | ||
|---|---|---|
| Low Pressure | 500.5 | I, II |
| High Temperature | 501.5 | I, II |
| Low Temperature | 502.5 | I, II |
| Temperature Shock | 503.5 | I-C |
| Solar Radiation | 505.5 | I |
| Rain Blowing/Drip | 506.5 | I, III |
| Humidity | 507.5 | II |
| Salt Fog | 509.5 | – |
| Dust Blowing | 510.5 | I |
| Immersion | 512.5 | I |
| Vibration | 514.6 | I |
| Shock | 516.6 | I, IV |
Also meets equivalent MIL-STD-810-C, -D, -E and -F.
Applicable IP Rating
| Ingress Protection Standards | ||
|---|---|---|
| Water | IP57 dust protection and waterproof protection (1 m depth of water for 30 minutes) |
|
