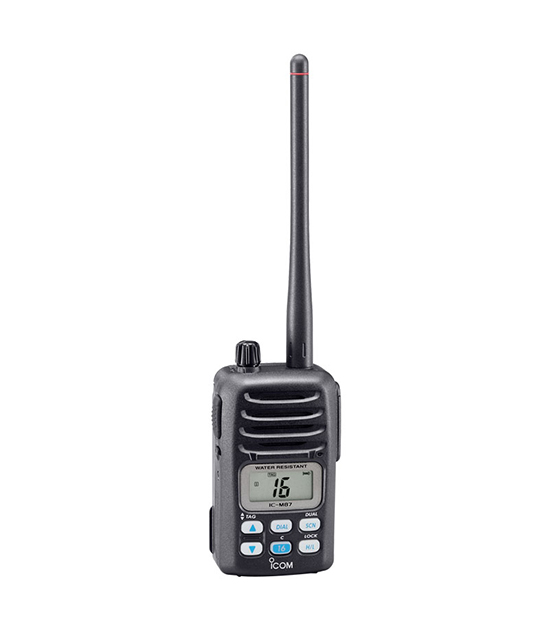

IC-M87
Compact marine, tough PMR
Tough and waterproof
The IC-M87 is built tough to withstand hazardous environments. Even if it is dropped into water, the waterproof construction* will protect it from harm. (1m depth for 30 minutes)
* Equivalent to IPX7.
Simple operation
6 clearly labelled buttons on the front panel and the volume/power knob maximize simplicity of operation. A large, clear LCD with backlighting and backlit buttons make night time operation easy.
Li-Ion battery for long battery life
With the standard battery pack, you can get up to 15 hours of operating time* without worrying about 'memory effect' of the battery.
*Tx:Rx:Stand-by= 5:5:90 with BP-274
22 programmable channels for PMR
The IC-M87 has 22 programmable channels reserved for PMR use (146–174MHz). Wide/narrow channel spacing is programmable for each channel, and CTCSS and DTCS signaling is built-in.
*Appropriate license will be required.
Other features
Instant access to Ch. 16 and call channel
Simple add/delete TAG scanning
Monitor button opens squelch
2 step power saver
Key lock function
Low battery indicator
Optional waterproof microphone, HM-168
SPECIFICATIONS
IC-M87 |
||
|---|---|---|
| Frequency range | Tx | 156.000–161.450 MHz |
| Rx | 156.000–163.425 MHz | |
| PMR; Tx/Rx | 146–174 MHz | |
| Dimensions (W×H×D) (Projections not included) |
62×97×37.8 mm | |
| Weight (approx.) | 274g (With BP-274) | |
| Current drain (approx.) | Transmit (High) | 1.6A typ. |
| Max. audio | 200mA typ. | |
| Sensitivity (at 20dB SINAD; emf) | –2dBμ typ. (Marine) –4dBμ typ. (PMR) |
|
| Intermodulation rejection | 68dB (Marine) 65dB (PMR) |
|
| Audio output power (With an 8Ω load) | 200mW (Marine) 350mW (PMR) |
|
| RF output power | 5/3/1W (Marine/PMR) 1/0.5W (Marine, German version) |
|
| Waterproof protection | IPX7 (1m depth/30 min) | |
| Waterproof speaker-microphone | HM-138 or HM-168 | |
| VOX headset | - | |
| Operating time (approx.)* | 15 hrs with BP-274 | |
| Tag scan | Available | |
| Favorite channel | - | |
| AquaQuake draining function | - | |
| CTCSS/DTCS with PMR channel | Available | |
| Voice scrambler | - | |
| Intrinsically safe | - | |
* Typical operation, Tx:Rx:Stand-by=5:5:90
Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.
| Standard | MIL-810 F Method, Proc. |
|---|---|
| Low Pressure Storage | 500.4 I |
| Low Pressure Operation | 500.4 II |
| High Temperature Storage | 501.4 I |
| High Temperature Operation | 501.4 II |
| Low Temperature Storage | 502.4 I |
| Low Temperature Operation | 502.4 II |
| Temperature Shock | 503.4 I |
| Solar Radiation | 505.4 I |
| Rain Blowing | 506.4 I |
| Rain Drip | 506.4 III |
| Humidity | 507.4 |
| Salt Fog | 509.4 |
| Dust Blowing | 510.4 I |
| Vibration | 514.5 I |
| Shock Functional | 516.5 I |
| Shock Transit Drop | 516.5 IV |
Also meets equicalent MIL-STD-810-C, -D and -E.
All stated specifications are subject to change without notice or obligation.
