• Output power:37//40/43dBm
• Mini compact appearance
• IP65, Indoor/Outdoor Application
• WEB GUI M&C

The Repeater features with high output power, waterproof performance and WEB GUI operation.

CELL Dual band  Repeater 5W~20W

The outdoor Repeater features with high gain, waterproof performance and WEB GUI operation.

It is is applied to larger to larger super size such as factory, offices, and Enterprises highway, village, oil field, plant etc

Feature

1. Compact appearance
2. Smart Automatic Level Control (ALC) to reduce interference to BTS
3. Linear power effectively suppress spurious emission

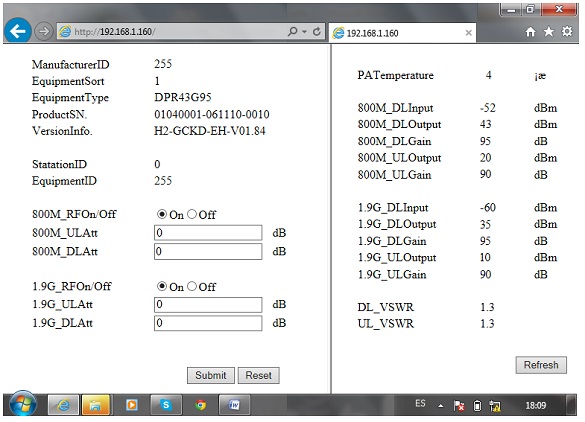

4. Easy GUI monitor via Embedded Web Server &RG45 interface
5. Unique color LEDs to indicate alarm of power supply alarm, VSWR and low signal level
6. Designed for outdoor installation, waterproof, damp-proof and Omni-sealed
7. Light weight and small size

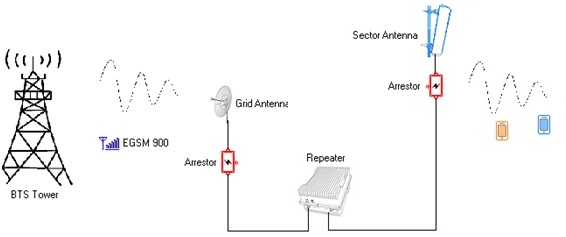

Application

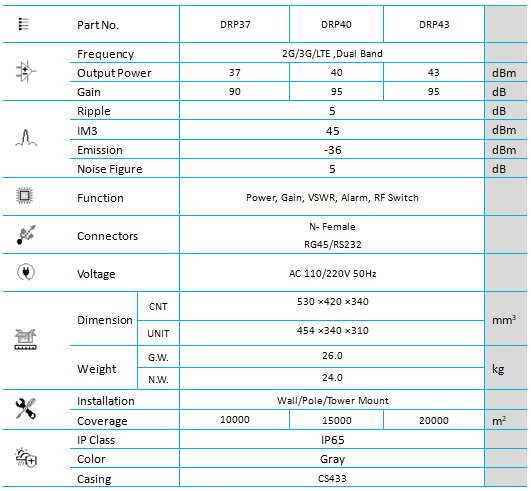

Datasheet
