• Output power:30/33dBm
• Mini compact appearance
• IP65, Indoor/Outdoor Application
• WEB GUI M&C
• CELL single band 1W/2W is applied to medium to larger size such as factory, offices, and Enterprises highway, village, oil field, plant etc

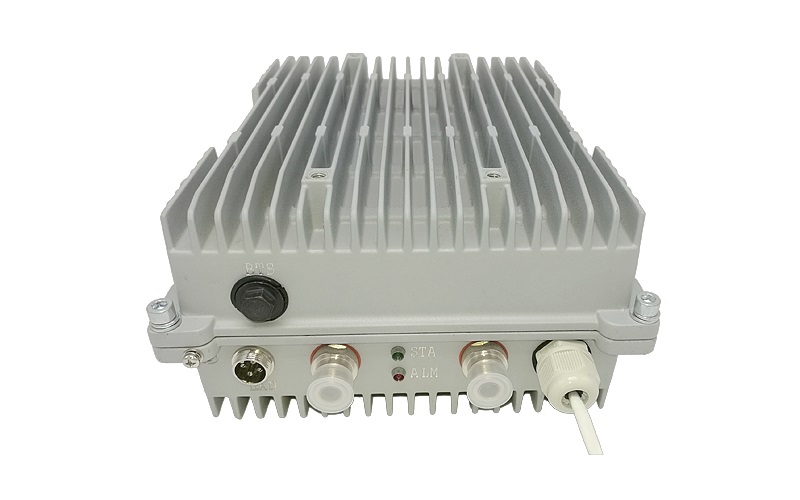

CELL single band 1W/2W

The outdoor Repeater features with high gain, waterproof performance and WEB GUI operation.

It is applied to medium to larger size such as factory, offices, and Enterprises highway, village, oil field, plant etc

Feature

1. Compact appearance
2. Smart Automatic Level Control (ALC) to reduce interference to BTS
3. Linear power effectively suppress spurious emission

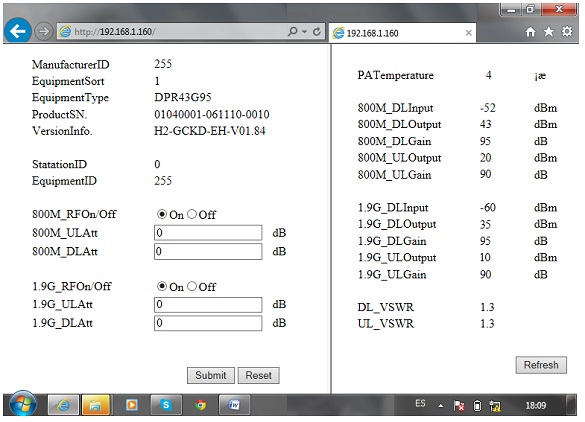

4. Easy GUI monitor via Embedded Web Server &RG45 interface
5. Unique color LEDs to indicate alarm of power supply alarm, VSWR and low signal level
6. Designed for outdoor installation, waterproof, damp-proof and Omni-sealed
7. Light weight and small size

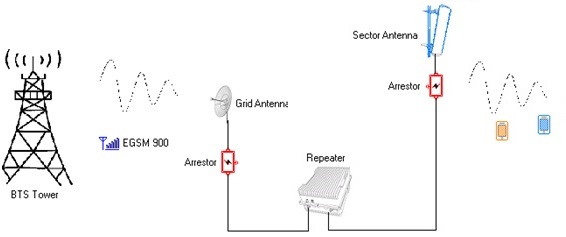

Application

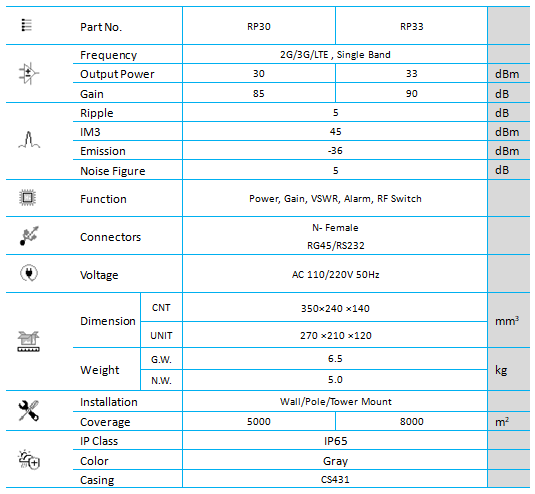

Datasheet
