• 2~200 Watts Optional
• DC-3000M
• 1~30 Attenuation Optional

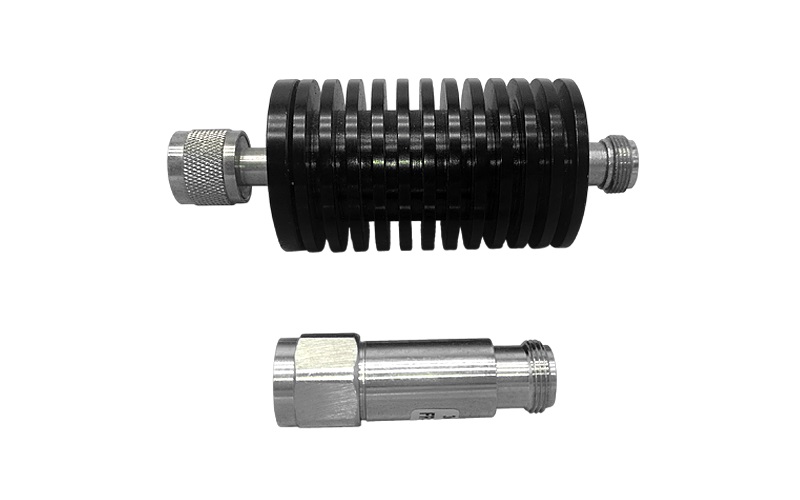

Fixed Attenuator

An attenuator is an electronic device that reduces the power of this signal without appreciably distorting its waveform.

The range of power attenuators is available in rating of 2~500Watts, and available in attenuation factors of 1,2,3,4,5,6,7,8,9,10,20&30dB.

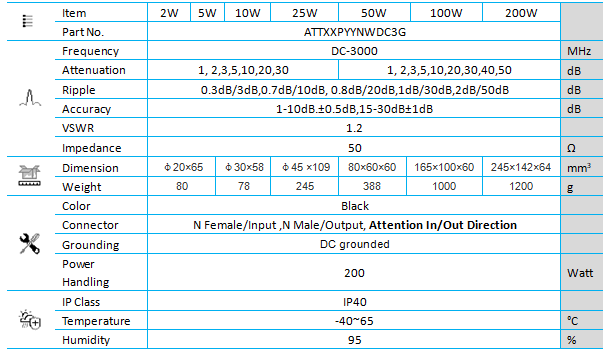

Datasheet

Reference Information

Part No.:ATTXXPYYNWDC3G

XX = 02, 05,10, 25,50,100,200 Handling power(Watts)

YY= 01, 02,03,05,10,20,30,40,50 Attenuation Value(dB)
