Multi-Band Hybrid Coupler

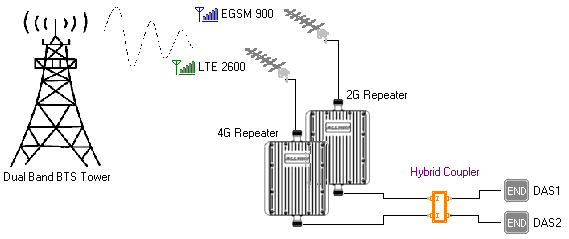

Hybrid couplers are designed to combine two wireless carriers to a single antenna feed or cable. This requires the termination of one output port in 50 ohms, and results in a 3 dB loss in each signal. In situations where two similar feeds are required both outputs may be used, eliminating the need for a termination.
Manufacturer: GSM SIGNAL BOOSTER
Category:
Component
- Multi-Band
- 2×Input Combine
- 2×Output Split
- Low insert loss, High isolation
Multi-Band Hybrid Coupler
Hybrid couplers are designed to combine two wireless carriers to a single antenna feed or cable.
This requires the termination of one output port in 50 ohms, and results in a 3 dB loss in each signal. In situations where two similar feeds are required both outputs may be used, eliminating the need for a termination.

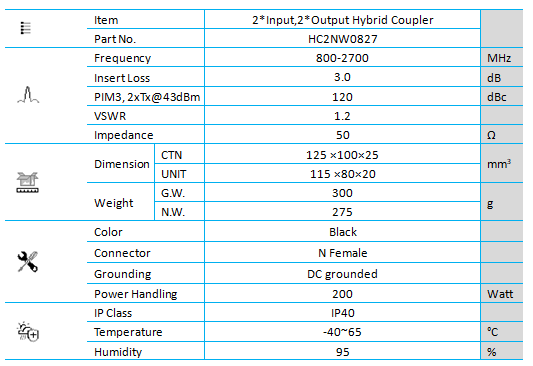

Datasheet
Reference Information
