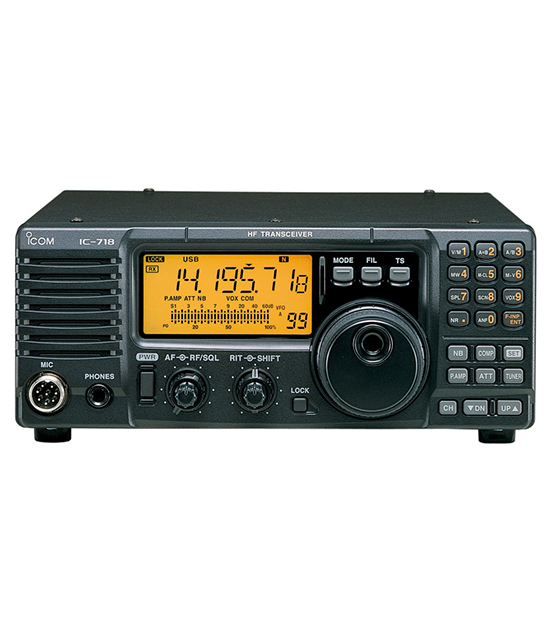

IC-718
Reliable long distance communications
Simple operation with keypad
A minimum of buttons and knobs provide uperior feature selectability. The 10 keypad allows you to enter an operating frequency or a memory channel number directly.
General coverage receive
The IC-718 covers 0.03-29.999999MHz* in SSB, CW, RTTY and AM modes. The 1st receiver mixer provides superior receiver sensitivity, rejecting nearby interfering signals.
*Guaranteed range: 0.5–29.999999MHz
Front mounted loud speaker
With the speaker facing the operator, audio sounds can be clearly heard without impediment during operation.
Other features
101 memory channels
VOX (Voice Operated Transmission)
Digital S/RF meter
Band stacking register
IF shift interference rejection
Optional AF DSP capabilities
Squelch/RF gain control
SPECIFICATIONS
IC-718 |
||
|---|---|---|
| Frequency range | Tx | 1.6-29.9999 MHz* (Guaranteed : 0.5-29.9999) |
| Rx | 0.03-29.9999 MHz | |
| Power supply requirement | 13.8V DC ±15% (negative ground) | |
| Dimensions (W×H×D) (Projections not included) |
240×95×239 mm 9.45×3.74×9.41 in |
|
| Weight (approx.) | 3.8kg; 8.4lb | |
| Current drain (approx.) | Transmit (High) | 20A typ. at max. power |
| Max. audio output | 2.0A | |
| Sensitivity (at 10dB S/N; 1.8–29.999MHz) |
SSB, CW, RTTY | 0.16μV |
| AM | 2.0μV typ | |
| Selectivity | SSB, CW, RTTY | 2.1kHz/-6dB 4.5kHz/-60dB |
| AM | 6.0kHz/-6dB 20kHz/-60dB |
|
| Audio output power (10% dist/ 4Ω load) | 2.0W (10% dist / 8Ω load) | |
| RF output power (PEP) (output power differs depending on version) |
SSB, CW, RTTY | 2-100W |
| AM | 2-40W | |
*IC-718 : Restriction may be applied depending on version.
All stated specifications are subject to change without notice or obligation.
