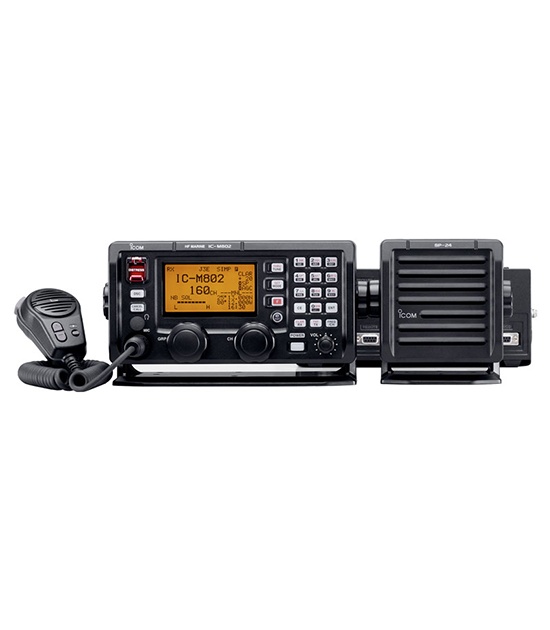

IC-M802
Advanced DSP marine radio with compact remote head
Digital Signal Processor
The digital IF filter provides flexible filter settings for narrow bandwidth signals without having to install an optional filter.
Built-in ITU Class E DSC
The IC-M802 conforms to Class E DSC requirements, vital for your safety at sea.
One touch e-mail button*
The e-mail button allows quick access to the pre-programmed e-mail frequency list.
Automatic antenna tuner, AT-140
The optional AT-140 easily connects to the radio without opening the casing. The tuner through function can be used with the AT-140.
Other features
4×8-inch remote controller and 4×4-inch external speaker
Large LCD with dot matrix characters
Channel and Group dials offer easy channel selection and operation
Powerful 150W (PEP) output
0.5 to 29.9999MHz wideband receiver
DIN and RS-232C connectors for external equipment
NMEA 0183 interface included
1035 ITU, 160 programmable and 160 e-mail channels are available
SPECIFICATIONS
IC-M802 |
||
|---|---|---|
| Frequency range | Tx | 1.6–2.9999 MHz 4.0–4.9999 MHz 6.0–6.9999 MHz 8.0–8.9999 MHz 12.0–13.9999 MHz 16.0–17.9999 MHz 18.0–19.9999 MHz 22.0–22.9999 MHz 25.0–27.5000 MHz |
| Rx | 0.5–29.9999 MHz | |
| Power supply requirement | 13.6V DC ±15% (negative ground) | |
| Dimensions (W×H×D) (Projections not included) |
Main unit: 240×94×238.4 mm; 9.4×3.7×9.4 in Controller unit: 220×110×84.4 mm; 8.7×4.3×3.3 in |
|
| Weight (approx.) | Main unit: 4.7kg; 10 lb 6 oz, Controller unit: 570g; 1 lb 4 oz |
|
| Current drain (approx.) | Transmit (High) | 30A typ. at max. power |
| Max. audio output | 3.0A | |
| Sensitivity | J3E, A1A: 0.5–1.5999 MHz 30 dBμV emf 1.6–1.7999 MHz 13 dBμV emf 1.8–29.9999 MHz 8 dBμV emf J2B, F1B: 1.6–1.7999 MHz 13 dBμV emf 1.8–29.9999 MHz 8 dBμV emf H3E: 0.5–1.5999 MHz 44 dBμV emf 1.6–1.7999 MHz 30 dBμV emf 1.8–3.999 MHz 24 dBμV emf DSC (J2B): 0.5–29.999 MHz 0 dBμV emf (at 1% error rate) |
|
| Audio output power (10% dist/ 4Ω load) | 4.0W | |
| RF output power (PEP) (output power differs depending on version) |
150/60/20W | |
All stated specifications are subject to change without notice or obligation.
