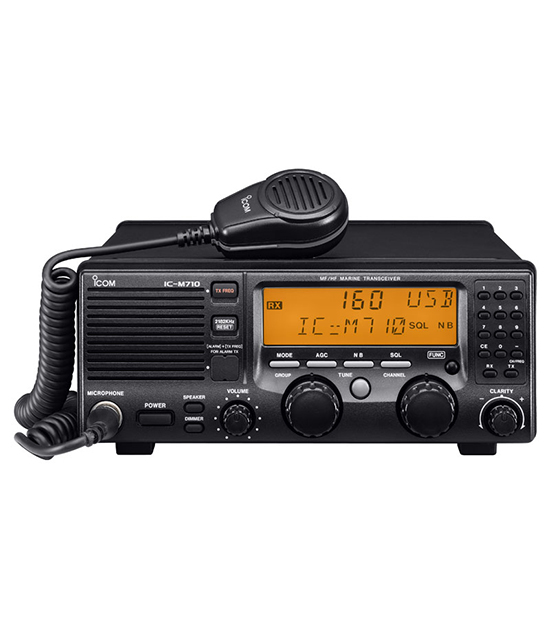

IC-M710
Simple, reliable, worldwide communications
Alphanumeric readout
Seven characters can be programmed into each memory channel to conveniently display
station names or ship names for simplified operation.
150W output power
A large cooling fan system, in combination with the aluminum chassis, allows conditions for transmission at a full 150W* (PEP) RF output power—even during demanding RTTY (radio teletype) operation.
*60W (PEP) above 24 MHz bands.
Other features
General coverage receiver
Terminals for frequency/mode control via NMEA interfacing
Automatic tuning function
Large, front-mounted speaker
Weather fax ready
Backlight control
CW full break-in and semi break-in
2-tone alarm built-in (Optional depending on version)
1136 channels available
SPECIFICATION
IC-M710 |
||
|---|---|---|
| Frequency range | Tx | 1.6–2.9999 MHz 4.0–4.9999 MHz 6.0–6.9999 MHz 8.0–8.9999 MHz 12.0–13.9999 MHz 16.0–17.9999 MHz 18.0–19.9999 MHz 22.0–22.9999 MHz 25.0–27.5000 MHz |
| Rx | 0.5–29.9999 MHz | |
| Power supply requirement | 13.6V DC ±15% (negative ground) | |
| Dimensions (W×H×D) (Projections not included) |
291.4×116.4×315 mm; 11.47×4.58×12.4 in |
|
| Weight (approx.) | 7.8kg; 17.2lb | |
| Current drain (approx.) | Transmit (High) | 30A at max. power |
| Max. audio output | 2.5A | |
| Sensitivity (1.8–29.999MHz) |
J3E,J2B,R3E,A1A (12dB SINAD) |
0.5μV |
| H3E （10dB S/N） | 3.2μV | |
| Spurious response rejection (1.6-29.999MHz) | More than 70dB | |
| Audio output power (10% dist/ 4Ω load) | 4W | |
| RF output power (PEP) (output power differs depending on version) |
150/60/20W (below 24MHz) 60/20W (above 24MHz) |
|
All stated specifications are subject to change without notice or obligation.
