Little Radio, Big Sound! Class Leading 1500 mW Audio and Full of Great Features

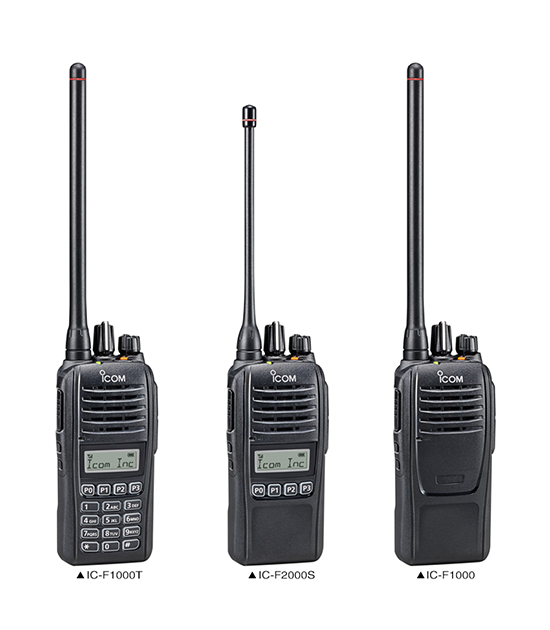

The IC-F1000/F2000 series provides class leading 1500 mW loud and clear audio with Icom custom high power handling capacity speaker. It offers a compact, waterproof durable design and is full of great features such as motion/stationary detection sensor, man down, voice scrambler and voice announcement functions. The radio is ideal for business and industry users who require economical value and reliability in a radio.

Icom custom high power handling capacity speaker for 1500 mW powerful audio

Compact, waterproof durable design (IP67 and MIL-STD-810-G)

Waterproof for 30 minutes at one meter depth

Enhanced emergency safety with built-in motion/stationary detection sensor

128 channel capacity with eight zones (Simple type and ten-key type)

Built-in 2-Tone, 5-Tone, CTCSS and DTCS

MDC and BIIS compatible

16-code inversion voice scrambler

Man down and lone worker functions

Channel announcement

Up to 14 hours of operating time with supplied BP-279 battery

General Features

• 136–174, 335–380, 400–470, 450–512, 450–520 MHz versions
• 1500 mW large volume audio from Icom custom speaker
• Improved sound clarity
• Compact (52.2 × 111.8 × 24.5 mm; 2.1 × 4.4 × 1.0 in) and lightweight (240 g; 8.5 oz with BP-279)
• IP67 waterproof and dust-tight protection
• Tested to 12 categories of MIL-STD-810-G environmental tests
• DTMF autodial memories
• 16-position rotary selector and ON/OFF volume knob
• “Shift key” function increases number of programmable key assignments
• Up to 14 hours of operating time with supplied BP-279 battery pack
• Eight character alphanumeric display (Ten-keypad/simplekeypad versions)
• Three color LED

Safety and Security

• 16-code inversion voice scrambler
• Radio Stun/Revive/Kill commands (2-Tone and 5-Tone, RX only)
• Radio Stun/Revive commands (MDC, RX only)
• Auto TX function (2-Tone and 5-Tone)
• MDC emergency call with open microphone function (MDC, RX only)
• Man down function
• Lone worker function
• Motion and stationary detection function
• Surveillance function temporarily turns OFF the beep and LED indicator
• Power ON password (for the simple type and 10-key type)
• Emergency key for emergency call

Signaling Functions

• CTCSS and DTCS tone
• 2-Tone and 5-Tone
• MDC PTT ID, Emergency (TX/RX), Radio Check (RX), Stun (RX), Revive (RX)
  Up to 100 ID numbers and names can be saved to show the alias name, instead of the ID number
• BIIS PTT ID transmission

Scan Functions

• Priority scan monitors one or two priority channels while scanning non-priority channels
• Mode dependent scan automatically changes the scan list according to the operating channel
• Power ON scan function
• Talk back timer

Voice/Audio Functions

• Channel announcement function
• VOX function for hands-free operation
• Audio compander
• Siren sound for security alarm

Supplied accessories

• Battery pack, BP-279
• Desktop charger, BC-213*
• AC adapter, BC-123SA/SE/SUK/SV or BC-242*
• Belt clip, MB-133
• Antenna

Specifications

General

Transmitter

Receiver

All stated specifi cations are subject to change without notice or obligation.
Measurements made in accordance with TIA-603 (USA/EXP) or EN 300-086 (EUR).
*1 25 kHz bandwidth is no longer available for FCC Part 90 licensees for USA versions.

FUNCTION COMPARISON AND INTERNAL UNIT OPTIONS

Applicable U.S. Military Specifications

Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.

Also meets equivalent MIL-STD-810 -C, -D, -E and -F.
