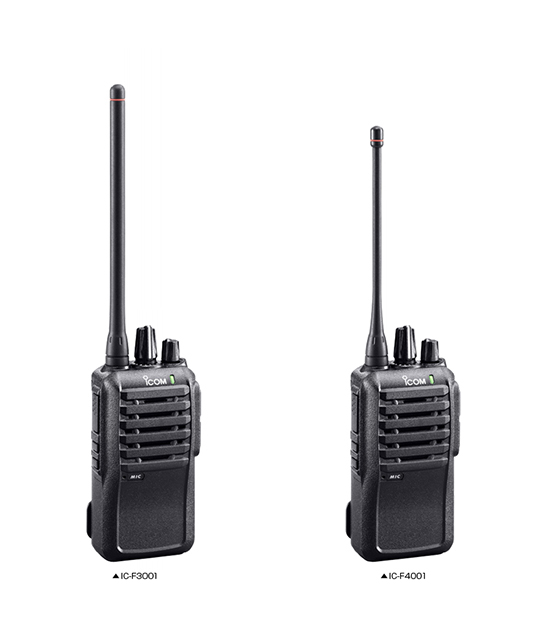

IC-F3000 / IC-F4000 Series
Affordable, high performance radio that offers abundant features
Simple operation for instant communication
The IC-F3001 series is so easy to use there's no special training required. The few knobs and buttons are generously sized for easy operation and are designed to provide non-slip, positive action – even while wearing gloves.
Easy to hear in noisy areas
The built-in bridge-tied load (BTL) amplifier offers powerful 800mW* audio output from the large 45mm speaker. The radio delivers loud and intelligible audio even in noisy environments.
* Typical with internal speaker
Longer operating time
A new high efficiency FET of the IC-F3001 series reduces consumption current and provides 20 hours* of operating time with the BP-265, 2000 mAh (typ.) battery pack. Even when used with the BP-264, the radio offers 14 hours* of operating time.
*Tx:Rx:Standby=5:5:90. Power save function ON.
Weather resistant, dust protection, military rugged
While the radio is a compact unit with a height of only 111mm (43/8 inch), the radio is tested to dust protection and water resistant equivalent to IP54 and 11 categories of MIL-STD-810 environmental test. In short, the IC-F3001 series is built rugged!
Internal VOX capability for hands-free operation
The radio has the internal VOX capability for hands-free operation. Optional compatible headset with plug adapter cable OPC-2004LA can be used with the radio. Also, the VOX gain and VOX delay time are adjustable.
Selective calling, quiet stand-by and more
2-Tone and 5-Tone signalings give you selective calling, quiet stand-by and other convenient functions with programming. The radio “stun” function disables a radio over the air and the “revive” function restores the stunned radio.
Scan features
The priority scan allows you to monitor one or two priority channels while scanning other non-priority channels. The Tx channel and talk back functions allow you to make a quick response while scanning.
Other features
- DTMF autodial
- CTCSS/DTCS encoder/decoder
- BIIS PTT ID transmission
- MDC PTT ID and emergency
- Low battery alert
- 2-step power save
- PC programmable
- Time out timer
- Talk around function
- Lone worker function
- Enhanced emergency
- 3-color LED
- Surveillance function
SPECIFICATIONS
General
IC-F3001 |
IC-F4001 |
|||
|---|---|---|---|---|
| Frequency range (Varies according to version) |
136MHz–174MHz
|
400MHz–470MHz
450MHz–512MHz |
||
| Number of memory channels |
16 channels
|
|||
| Channel spacing (Varies according to version) |
12.5kHz/25kHz
15kHz/30kHz |
12.5kHz/25kHz
|
||
| Type of emission |
16K0F3E/11K0F3E
|
|||
| Current drain | Tx |
1.3A
|
||
| Rx | Stand-by |
75mA
|
70mA
|
|
| Max. audio |
330mA (Internal SP)
|
|||
| Dimensions (W×H×D) (Projections are not included) |
58×111×31.0mm;
2.28×4.37×1.22 in (With BP-264) 58×111×35.5mm; 2.28×4.37×1.4 in (With BP-265) |
|||
| Weight |
330g; 11.6oz (With BP-264)
270g; 9.5oz (With BP-265) |
|||
Transmitter
IC-F3001 |
IC-F4001 |
|
|---|---|---|
| RF output power (at 7.2V DC)) |
5W, 2W, 1W
(Hi, L2, L1) |
4W, 2W, 1W
(Hi, L2, L1) |
| Spurious emissions |
70dB min.
|
|
| Frequency stability |
±2.5ppm
|
|
| Audio harmonic distortion (W/N) |
1.0%/1.5% (typ.)
|
|
| FM Hum and Noise (W/N) |
46dB/40dB (typ.)
|
|
Receiver
IC-F3001 |
IC-F4001 |
||
|---|---|---|---|
| Sensitivity at 12dB SINAD |
0.25μV (typ.)
|
||
| Adjacent channel selectivity (W/N) |
78dB/70dB (typ.)
|
73dB/65dB (typ.)
|
|
| Spurious response rejection |
70dB (min.)
|
||
| Intermodulation rejection |
75dB (typ.)
|
74dB (typ.)
|
|
| AF output power (at 5% distortion ) |
Internal SP (With 12Ω load) |
800mW (typ.)
|
|
| External SP (With 8Ω load) |
400mW (typ.)
|
||
Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.
| Standard |
MIL-810 F
Method, Proc. |
|---|---|
| Low Pressure Storage |
500.4 I
|
| Low Pressure Operation |
500.4 II
|
| High Temperature Storage |
501.4 I
|
| High Temperature Operation |
501.4 II
|
| Low Temperature Storage |
502.4-3 I
|
| Low Temperature Operation |
502.4-3 II
|
| Temperature Shock |
503.4 I
|
| Solar Radiation |
505.4 I
|
| Rain Blowing |
506.4 I
|
| Rain Drip |
506.4 III
|
| Humidity Induced |
507.4
|
| Salt Fog |
509.4
|
| Dust Blowing |
510.4 I
|
| Vibration |
514.5 I
|
| Shock Functional |
516.5 I
|
| Shock Transit Drop |
516.5 IV
|
Also meets equivalent MIL-STD-810 -C, -D and -E.
Ingress Protection Standard
| Dust & Water |
IP54 (Dust-protection and water resistant)
|
|---|
