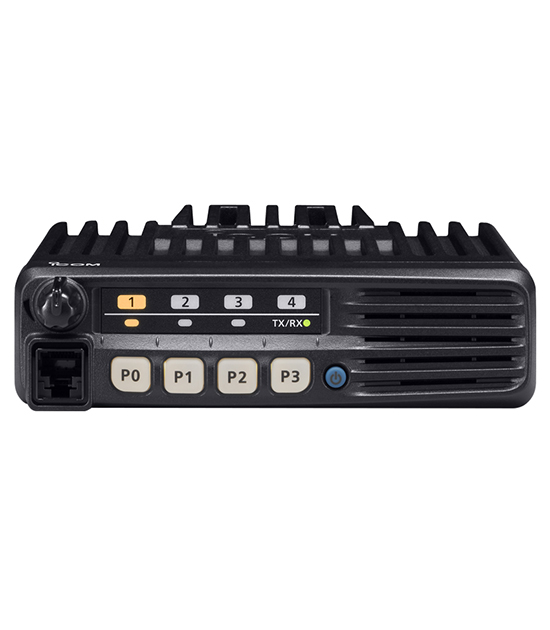

IC-F5010 / IC-F6010 Series
Simple operation, versatile functions & rugged construction for your day-to-day communication needs
Simple operation for instant communication
The IC-F5011 series has 8 channels. The P0-P3 programmable buttons allows you to customize the radio to suit your needs and convenience.
Most popular signalings built-in
Use the built-in 2-Tone, 5-Tone, MDC 1200, CTCSS and DTCS capabilities as standard to set up your own talk groups and quiet stand-by when others are talking.
Multiple 2-Tone, multiple 5-Tone
Up to ten 2-Tone or eight 5-Tone codes can be decoded on a channel. Features such as stun, kill, revive, answer back, auto TX, scan, audio output are programmable to respond to each tone.
MDC 1200 compatible
The IC-F5011 series has a built-in MDC 1200 for transmitting a PTT ID and emergency* signal and for receiving radio check, stun and revive. Assimilate the radio easily into existing MDC 1200 systems.
* No ACK transmission
Enhanced scan features
The priority scan function allows you to monitor one or two priority channels while scanning other non-priority channels. The Tx channel and talk back functions allow you to make a quick response while scanning.
Remote channel control with optional ACC cable
Photo includes optional OPC-2078. The optional ACC cable allows you to connect with various external devices to control audio output, modulated signal input, remote channel control, horn honk and many more functions. OPC-1939 is a D-SUB 15-pin type and OPC-2078 is a D-SUB 25-pin type.
Built military rugged
The IC-F5011 series is tested to MIL-STD 810 F specifications. The radio is built to survive harsh environment and keep working.
Other features
- 4W (typ.) front mounted speaker
- Wide frequency coverage (136-174, 400-470 and 450-512MHz)
- Wide/narrow channel spacing (25, 12.5kHz) programmable
- Microphone hanger action programmable
- Optional DTMF microphone (HM-152T)
- Optional voice scrambler unit, UT-109R or UT-110R
- DTMF autodial function
- PC programmable
- Talk around function
- Power-on password function
- Nuisance delete function
- Time-out-timer, lock-out penalty timer
SPECIFICATIONS
General
IC-F5011 |
IC-F6011 |
|||
|---|---|---|---|---|
| Frequency coverage |
136-174MHz
|
400-470MHz
450-512MHz |
||
| Number of channels |
8 channels
|
|||
| Channel spacing |
12.5/25kHz, 15/30kHz
|
12.5/25kHz
|
||
| Type of emission |
16K0F3E/11K0F3E
|
|||
| Current drain (approx.) |
Tx | High (50W/45W) |
10A
|
11A
|
| Rx | Stand-by |
250mA
|
||
| Max. audio |
700mA
|
|||
| Dimensions (projections not included; W×H×D) |
150×40×167.5mm;
5.91×1.57×6.59in |
|||
| Weight |
1.1kg; 2.4lb
|
|||
Transmitter
IC-F5011 |
IC-F6011 |
|
|---|---|---|
| RF output power |
50W, 25W, 5W
(Hi, L2, L1) |
45W, 25W, 4.5W
(Hi, L2, L1) |
| Spurious emissions |
70dB (min.)
|
70dB (typ.)
|
| Frequency stability |
±2.5ppm
|
|
| Audio harmonic distortion |
3% typical
40% deviation |
|
| FM Hum and Noise |
46/40dB typ. (Wide/Narrow)
|
|
Receiver
IC-F5011 |
IC-F6011 |
|
|---|---|---|
| Sensitivity at 12dB SINAD |
0.25μV (typ.)
|
|
| Adjacent channel selectivity (W/N) |
75dB/65dB (typ.)
|
|
| Spurious response rejection |
70dB min.
|
|
| Intermodulation rejection |
75dB (typ.)
|
|
| AF output power (at 5% distortion with an 4Ω load) |
4W (typ.)
|
|
Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.
| Standard | MIL-810 F Method, Proc. |
|---|---|
| Low Pressure Storage |
500.4 I
|
| Low Pressure Operation |
500.4 II
|
| High Temperature Storage |
501.4 I
|
| High Temperature Operation |
501.4 II
|
| Low Temperature Storage |
502.4 I
|
| Low Temperature Operation |
502.4 II
|
| Temperature Shock |
503.4 I
|
| Solar Radiation |
505.4 I
|
| Humidity Induced |
507.4
|
| Settling Dust |
510.4 III
|
| Vibration |
514.5 I
|
| Shock Functional |
516.5 I
|
| Shock Transit Drop |
516.5 IV
|
Also meets equivalent MIL STD 810 -C, -D and -E.
All stated specifications are subject to change without notice or obligation.
