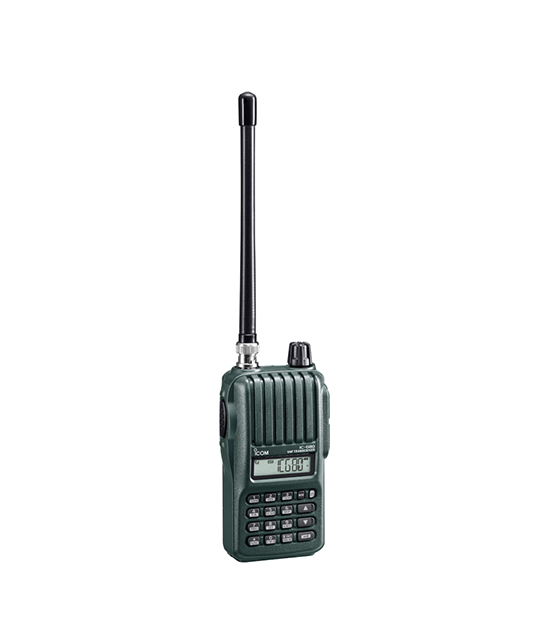

IC-G80
Professional in every sense! Performance, build, audio and operation
5W output power, 136-174MHz full VHF coverage
Professional RF performance, resistance to interference
750mW* loud and intelligible audio with BTL amplifier and large 36mm speaker
* Typical value with internal speaker.
IP54 and MIL-STD-810 rugged construction
Large capacity Li-Ion battery pack provides 18.5 hours* of operating time
* Typical operation. 5:5:90 duty cycle with auto power save.
Wide/narrow channel spacing
Integrated VOX function
200 channels
Built-in CTCSS and DTCS encoder/decoder
5 character alphanumeric display
Priority, memory and skip scanning
16 DTMF autodial memories
Repeater lockout and busy channel lockout
Time-out-timer
Power save function and auto power off
SPECIFICATIONS
General
IC-G80 |
|||
|---|---|---|---|
| Frequency range |
136MHz–174MHz
|
||
| Number of channels |
200 channels
|
||
| Channel spacing |
12.5kHz/25kHz
|
||
| Type of emission |
F2D/F3E
|
||
| Current drain | Tx | 1.4A (5W) | |
| Rx | Stand-by |
60mA typ.
|
|
| Max. audio |
300mA (Internal SP)
|
||
| Dimensions (W×H×D) (Projections are not included) |
58×112×30 mm
|
||
| Weight |
140g (Without battery pack)
360g (With BP-264 and antenna) |
||
Transmitter
IC-G80 |
|
|---|---|
| RF output power (at 7.2V DC) |
5.0/2.5/0.5W (High/Mid/Low)
|
| Spurious emissions |
Less than -70dB
|
| Frequency stability |
±2.5ppm
|
Receiver
IC-G80 |
||
|---|---|---|
| Sensitivity (at 12dB SINAD) |
0.18μV typ.
|
|
| Adjacent channel selectivity (W/N) |
72/65dB typ.
|
|
| Spurious & Image rejection |
80dB typ.
|
|
| Intermodulation rejection |
72dB typ.
|
|
| AF output power (at 5% distortion ) |
Internal SP (With 16Ω load) |
750mW typ.
|
| External SP (With 8Ω load) |
420mW typ.
|
|
Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.
| Standard |
MIL-810 F
Method, Proc. |
|---|---|
| Low Pressure Storage |
500.4 I
|
| Low Pressure Operation |
500.4 II
|
| High Temperature Storage |
501.4 I
|
| High Temperature Operation |
501.4 II
|
| Low Temperature Storage |
502.4 I
|
| Low Temperature Operation |
502.4 II
|
| Temperature Shock |
503.4 I
|
| Solar Radiation |
505.4 I
|
| Rain Blowing |
506.4 I
|
| Rain Drip |
506.4 III
|
| Humidity Induced |
507.4
|
| Salt Fog |
509.4
|
| Dust Blowing |
510.4 I
|
| Vibration |
514.5 I
|
| Shock Functional |
516.5 I
|
| Shock Transit Drop |
516.5 IV
|
Also meets equivalent MIL-STD-810 -C, -D and -E.
Ingress Protection Standard
| Dust & Water |
IP54 (Dust-protection and water resistant)
|
|---|
