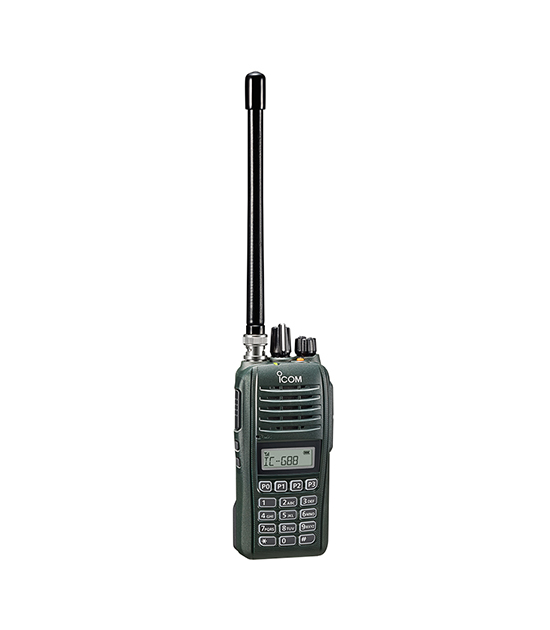

IC-G88
1500 mW Powerful Audio, Waterproof and User-Friendly Operation to Match Various Needs
IP67 Waterproofing
1500 mW powerful audio
Easy field programming with VFO mode operation
Up to 16 Favorite channels can be assigned to the rotary knob
IP67 waterproof and dust-tight protection
5.5 W of output power
Up to 20 hours of operating time with the supplied waterproof battery
Eight character alphanumeric display
CTCSS and DTCS encoder/decoder with Pocket beep
Eight DTMF autodial memories
MDC 1200 PTT ID and BIIS 1200 PTT ID
Inversion voice scrambler (16 code) for private conversations
Channel announcement of the operating channel number
Seven programmable buttons with Shift key function
Priority, memory and VFO scan
Hands-free operation with an optional headset
SPECIFICATIONS
General
IC-G88 |
||
|---|---|---|
| Frequency coverage |
136MHz–174MHz
|
|
| Type of emissions |
16K0F3E, 11K0F3E (25/12.5 kHz)
|
|
| Number of channels |
128 channels
|
|
| Antenna impedance |
50 Ω (BNC)
|
|
| Power supply requirement |
7.5 V DC
|
|
| Operating temperature range |
–30 ˚C to +60 ˚C (Radio only)
|
|
| Frequency stability |
±2.5 ppm
|
|
| Current drain (Approximate) | Tx High |
1.5 A
|
| Rx Max. audio/Stand-by |
500 mA (Internal SP) / 77 mA
|
|
| Dimensions (W×H×D) (Projections not included) |
52.2 × 111.8 × 30.3 mm (with BP-280)
|
|
| Weight Approximate) |
270 g (with BP-280)
|
|
Transmitter
IC-G88 |
|
|---|---|
| Output power (at 7.5 V DC) |
5.5/2.0/1.0W
(Hi/L2/L1) |
| Max. frequency deviation |
±5.0kHz/±2.5kHz (Wide/Narrow)
|
| Spurious emissions |
70 dB minimum
|
| External microphone connector |
3-conductor 2.5(d)mm (1/10″)/2.2kΩ
|
Receiver
IC-G88 |
|||
|---|---|---|---|
| Sensitivity |
0.25 µV typical (at 12 dB SINAD)
|
||
| Squelch sensitivity |
0.25 µV typical (at threshold)
|
||
| Adjacent channel selectivity |
76 dB/ 53 dB typical (W/N)
|
||
| Intermodulation |
74 dB typical
|
||
| Spurious response |
70 dB minimum
|
||
| Audio output power | Internal SP |
1500 mW typ. (8Ω load)
|
|
| External SP |
400 mW typ. (8Ω load)
|
||
| External speaker connector |
3-conductor 3.5(d)mm (1/8″)/8Ω
|
||
Measurements made in accordance with EIA/TIA-603.
Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.
| Standard |
MIL-810 G
|
|
|---|---|---|
|
Method
|
Proc.
|
|
| Low Pressure |
500.5
|
I, II
|
| High Temperature |
501.5
|
I, II
|
| Low Temperature |
502.5
|
I, II
|
| Temperature Shock |
503.5
|
I-C
|
| Solar Radiation |
505.5
|
I
|
| Rain Blowing/Drip |
506.5
|
I, III
|
| Humidity |
507.5
|
II
|
| Salt Fog |
509.5
|
–
|
| Dust Blowing |
510.5
|
I
|
| Immersion |
512.5
|
I
|
| Vibration |
514.6
|
I
|
| Shock |
516.6
|
I, IV
|
Also meets equivalent MIL-STD-810-C, -D, -E and -F.
| Ingress Protection Standards | |
|---|---|
| Dust & Water |
IP67 (Dust-tight and waterproof protection)
|
