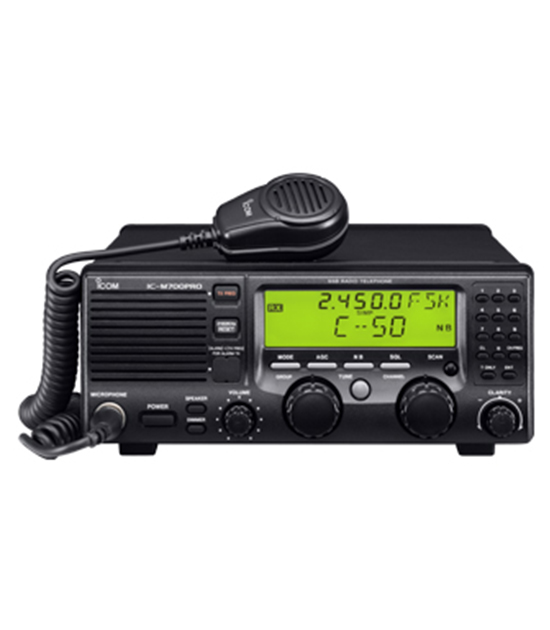

IC-M700PRO
A favorite among SSB marine radio operators
Simplified operation
Channel selection is quick and easy to access with large, independent Group and Channel knobs. Each panel button has only 1 function. The large easy to read display shows channel (or frequency) and operating status at a glance.
Data operation capability
The powerful 150W* (PEP) transmitter provides long distance communication, and ensures that power is always available to you-even during demanding RTTY (radio teletype) or e-mail operation.
*60W (PEP) above 24MHz bands.
Other features
Optional automatic antenna tuner, AT-140/AT-130, matches the radio to your antenna
0.5 to 29.9999MHz wide band general coverage receive
Channel knob allows the user to tune specific frequencies around a memory channel
2 DIN connectors for external equipment connection-linear amplifier, FSK terminal, e-mail modem, etc.
2-tone alarm built-in (Optional depending on version)
NMEA 0183 interface included
SPECIFICATIONS
IC-M700PRO |
||
|---|---|---|
| Frequency range | Tx | 1.6–2.9999 MHz 4.0–4.9999 MHz 6.0–6.9999 MHz 8.0–8.9000 MHz 12.0–13.9999 MHz 16.0–17.9999 MHz 18.0–19.9999 MHz 22.0–22.9999 MHz 25.0–27.5000 MHz |
| Rx | 0.5–29.9999 MHz | |
| Power supply requirement | 13.6V DC ±15% (negative ground) | |
| Dimensions (W×H×D) (Projections not included) |
291.4×116.4×315 mm 11.47×4.58×12.4 in |
|
| Weight (approx.) | 7.8kg; 17.2 lb | |
| Current drain (approx.) | Transmit (High) | 30A at max. power |
| Max. audio output | 2.5A | |
| Sensitivity (at 10dB S/N; 1.8–29.999MHz) |
J3E, J2B, R3E, A1A (12dB SINAD) |
0.35μV typ. |
| H3E | 2.2μV typ. | |
| Selectivity | J3E, R3E, J2B, A1A | 2.3kHz/–6dB 4.2kHz/–60dB |
| Audio output power (10% dist/ 4Ω load) | 4W | |
| RF output power (PEP) (output power differs depending on version) |
150/60/20W (below 24MHz) 60/20W (above 24MHz) |
|
All stated specifications are subject to change without notice or obligation.
