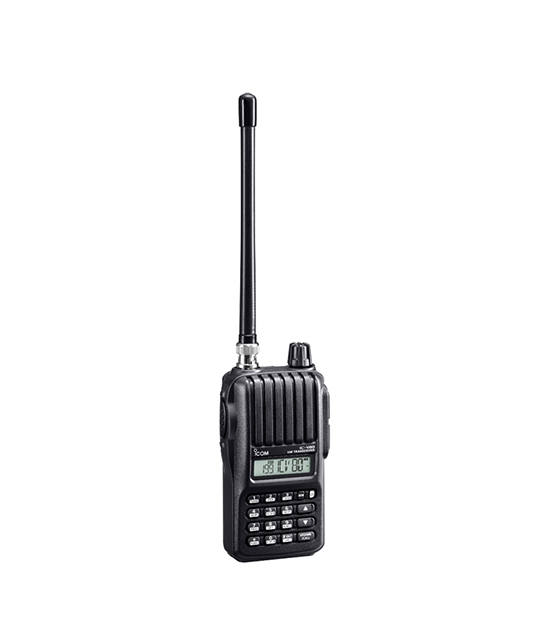

IC-V80 LMR Version
Tough body and powerful audio!
750mW* loud and intelligible audio with BTL amplifier and large 36mm speaker
* Typical value with internal speaker.
Powerful 5.5W of output power
IP54 and MIL-STD-810 rugged construction
Large capacity Li-Ion battery pack provides 19 hours* of operating time
* Typical operation. 5:5:90 duty cycle with auto power save.
Integrated VOX function
200 memory channels, 1 call channel and 6 scan edges
Built-in CTCSS and DTCS encoder/decoder
5 character alphanumeric display
Priority, program, memory, skip and tone scanning
16 DTMF autodial memories
Repeater lockout and busy channel lockout
Time-out-timer
Power save function and auto power off
PC programmable (With optional CS-V80)
Transceiver-to-transceiver cloning (Optional)
Wide/narrow channel spacing
SPECIFICATIONS
| Frequency coverage (Differs according to version ) |
136–174MHz*1 |
|---|---|
| Dimensions (W×H×D; Proj. not included) |
58×112×30 mm; 2.28 × 4.41 × 1.18 in |
| Weight (approx.) |
360g; 12.7oz with antenna and BP-264 |
| Output power (typical values) |
5.5W, 2.5W, 0.5W at 7.2V DC |
| Sensitivity (at 12dB SINAD) |
0.14μV typ. |
| Audio output power (at 10% distortion) |
750mW typ. (Internal SP, 16Ω load) 450mW typ. (External SP, 8Ω load) |
*1 Guaranteed range 144–148MHz.
All stated specifications are subject to change without notice or obligation.
