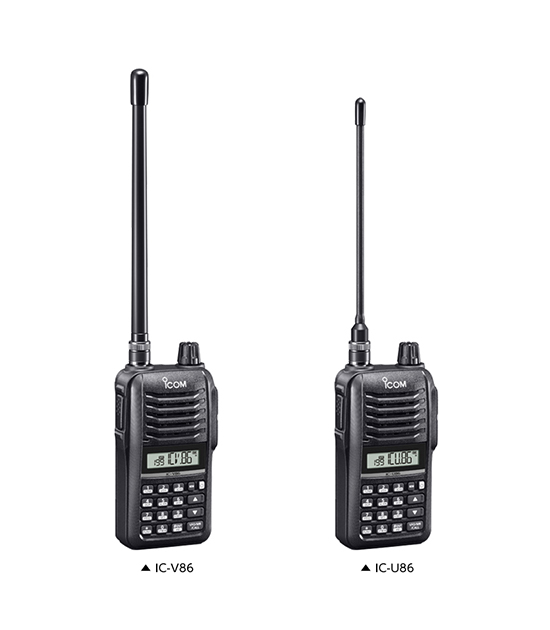

IC-V86, IC-U86
The Next Generation of the IC-V80, with 7 W Output Power and 1500 mW Audio
7 W output power plus new antenna provides 1.5 times* more communication distance
*Wide open space
* Wide open space. Approximate, comparing the IC-V86 with the IC-V80. Communication range may differ depending on operating environment or weather conditions, etc. 7 W output power is only for theIC-V86.
1500 mW powerful audio and 1.5 times* higher sound pressure
1500 mW powerful audio
* Approximate, comparing the IC-V86 with the IC-V80.
Dust-protection, water resistance and a tough body
(IP54 and MIL-STD 810G)
19 hours* of long lasting battery life
* EX Hi power with BP-298. TX : RX : standby = 5 : 5 : 90 (3 sec. : 3 sec. : 54 sec. ) (The Power Save function is set to "P–S.16")
No PC programming necessary, settings changeable from the radio*
* PC programming is also available.
Durable BNC type antenna connector
Made in Japan quality and reliability
Other Features
- Audio volume/VFO mode/Memory channel mode can be changed with the rotary knob
- Supplied BC-240, battery charger with a charging control function that prolongs the life of the battery
- Integrated VOX function
- 200 memory channels, 1 Call channel and 6 scan edges
- Built-in CTCSS and DTCS encoder/decoder
- Priority, program, memory, skip and tone scanning
Supplied accessories
- BP-298/BP-264, battery pack*
- BC-240, Desktop charger
- BC-242, AC adapter
- MB-124, belt clip
- Antenna*
(* May differ, depending on transceiver version)
SPECIFICATIONS
General
IC-V86 |
IC-U86 |
||
|---|---|---|---|
| Frequency range (TX/RX guaranteed range) |
136–174 MHz
(EX Hi power TX : 144–160 MHz) |
EXP1 : 400–472 MHz
(EX Hi power TX : 430–450 MHz) EXP2 : 330–400 MHz (EX Hi power TX : 335.4–380 MHz) |
|
| Type of emissions |
F2D, F3E (FM, FM-N)
|
||
| Number of channels |
207 channels (200 memory channels, 1 call channel and 6 scan edges)
|
||
| Antenna impedance |
50Ω
|
||
| Power supply requirement |
7.5V DC
|
||
| Operating temperature range |
–20 ˚C to +60 ˚C, –4 °F to +140 °F
|
||
| Frequency stability |
±2.5ppm (–20 ˚C to +60 ˚C, –4 °F to +140 °F)
|
||
| Current drain | TX (EX Hi/Hi/Mid/Low) |
1.6/1.4/1.0/0.5 A typical | EXP1: 1.6/1.5/1.0/0.5 A typ. EXP2: 1.6/1.4/0.9/0.5 A typ. |
| RX (Max. audio) |
450 mA typ. (INT SP),
200 mA typ. (EXT SP) |
450 mA typ. (INT SP),
200 mA typ. (EXT SP) |
|
| Dimensions (W×H×D) (Projections not included) |
58.6 × 112 × 30.5 mm,
2.3 × 4.4 × 1.2 in (with BP-298) |
||
| Weight (Approximate) |
300 g, 10.6 oz
(with BP-298, FA-B57V) |
290 g, 10.2 oz
(with BP-298, FA-B57U) |
|
Transmitter
IC-V86 |
IC-U86 |
|
|---|---|---|
| Output power (EX Hi/Hi/Mid/Low) |
7.0/5.5/2.5/0.5 W
|
5.5/4/2/0.5 W
|
| Maximum frequency deviation |
±5.0 kHz/±2.5 kHz (Wide/Narrow)
|
|
| Spurious emissions |
Less than –60 dB
|
|
| External microphone connector |
3-conductor 2.5 (d) mm (1/10")/2.2 kΩ
|
|
Receiver
IC-V86 |
IC-U86 |
||
|---|---|---|---|
| Sensitivity |
–124 dBm typical
|
EXP1: –121 dBm typical
EXP2: –123 dBm typical |
|
| Squelch sensitivity |
–126 dBm typical
|
EXP1: –123 dBm typical
EXP2: –125 dBm typical |
|
| Selectivity (Wide/Narrow) |
75 dB typical/
70 dB typical |
70 dB typical/
68 dB typical |
|
| Intermodulation |
65 dB typical
|
||
| Audio output power | Internal SP |
1500 mW typical (with 8 Ω load)
|
|
| External SP |
550 mW typical (with 8 Ω load)
|
||
| External speaker connector |
3-conductor 3.5(d)mm (1/8″)/8Ω
|
||
Applicable U.S. Military Specifications
| Standard | ||
|---|---|---|
| Low Pressure | 500.5 | I, II |
| High Temperature | 501.5 | I, II |
| Low Temperature | 502.5 | I, II |
| Temperature Shock | 503.5 | I-C |
| Solar Radiation | 505.5 | I |
| Rain Blowing/Drip | 506.5 | I, III |
| Humidity | 507.5 | II |
| Salt Fog | 509.5 | – |
| Dust Blowing | 510.5 | I |
| Vibration | 514.6 | I |
| Shock | 516.6 | I, IV |
Also meets equivalent MIL-STD-810-C, -D, -E and -F.
Applicable IP Rating
| Ingress Protection Standard | ||
|---|---|---|
| Dust and Water | IP54 (Dust-protection, water resistance) | |
